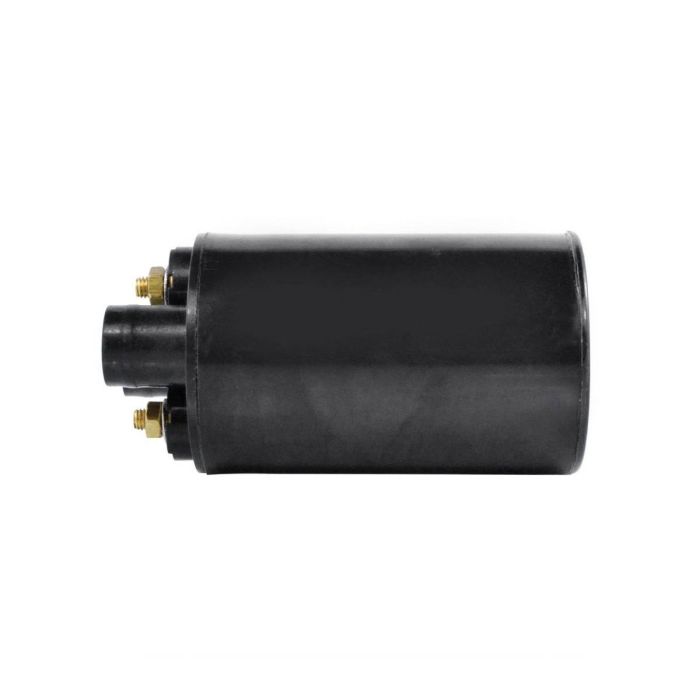

Replaces Onan part number(s): 541-0522, HE166-0761, c32296, 714000, NN10245, 98-1705
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation
Not for use on points systems.
All products shipped are tested
Primary Resistance - 4.25 ohms
Primary Inductance - 9.48 mH
Secondary Resistance - 37.85 K ohms
Secondary Inductance - 59.96 H
Specifications:
Serial number and other restrictions apply to this product:
316 - Must have the P218G engine Serial numbers 420,001 to 999,000 & Serial numbers 10,001 to 120,000
317 - Must have the replacement Onan P218G engine in the tractor No serial number range is affected, you must check your engine model. This part will not fit Kohler engines.
318 - Must have the P218G engine Serial numbers 420,001 to 999,000 & Serial numbers 10,001 to 120,000
420 - Must have the P220G engine Serial numbers 420,001 and above
F910 - Serial numbers between 420001-750000 and 010001-100000
F930 - Serial numbers between 420001-750000
Please note: This ignition coil will only fit if:
The 316 have the P218G engine and his serial number is between 420 001 and 999 000 or between 10 001 and 120 000.
The 317 have the replacement Onan P218G engine, if not this ignition coil will not work.
The 318 have the P218G engine and his serial number is between 420 001 and 999 000 or between 10 001 and 120 000.
The 420 have the p220G engine and his serial number is higher than 420 000
