NGK Laser Iridium Spark Plug 6419 - CR9EHI-9

NGK's Single Iridium Series Plugs were Designed Specifically for the Performance Enthusiast.

• Fine Wire Center Electrode Ensures High Durability and a Consistently Stable Spark
• Iridium Alloy has an Extremely High Melting Point, Perfect for Today's High-Tech, High Performance Engines
• Trivalent Metal Plating Provides Superior Anti-Corrosion and Anti-Seizing Properties
• Corrugated Ribs Prevent Flashover
• Pure Alumina Silicate Ceramic Insulator, Provides Superior Strength and Better Heat Transfer
• Copper Core Aids in Heat Removal
• Triple Seals Prevent Leakage
• Sold individually

Features

• Wide Gap
• Partial Thread
• Fine Wire Center Electrode

Shell

• Thread Size: 10mm
• Thread Pitch: 1.0mm
• Seat Type: Gasket
• Resistor: Yes
• Resistor Value: 5K Ohm
• Reach: 19mm (3/4")
• Hex Size: 5/8" (16mm)
• Terminal Type: Threaded Stud
• Overall Height: ISO
• Gap:. 035" (0.9mm)

Center Electrode

• Material: Iridium
• Type: Fine Wire
• Size: 1.0mm
• Projection: Projected

Ground Electrode

• Material: Platinum
• Type: Standard
• Quantity: 1

Specifications

• Torque Specs: Cast Iron: 7.2-10.8 lb. ft. Aluminum: 7.2-8.7 lb. ft.
• Brand: NGK
• Heat Range: 9
• Longevity: 80-100k
• Features: 12.7mm Threaded Reach

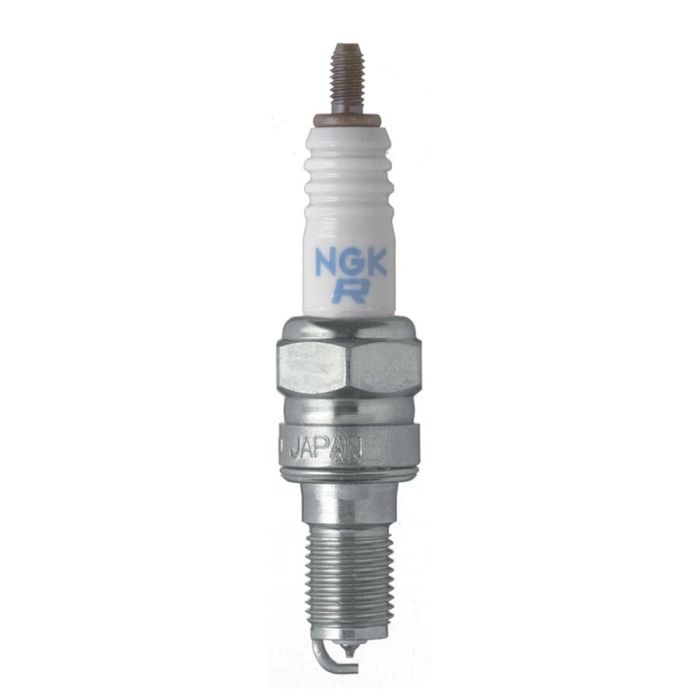

Note: Image for reference only, actual product may vary.
