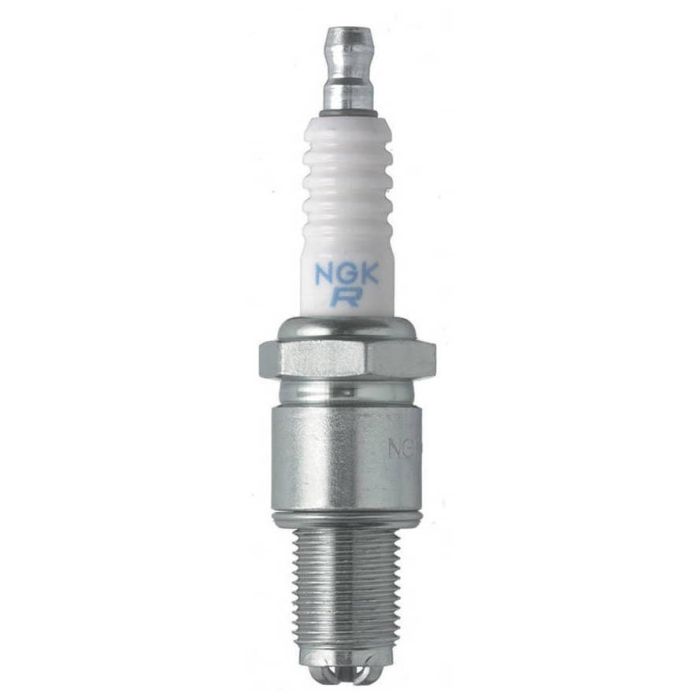

NGK Standard Spark Plug 2329 - BR8EQ-14

Multi-ground electrodes improve ignition capabilities and are less sensitive to increased voltage requirements due to gap growth.

Designed to specific manufacturer ignition requirements, NGK's multi-ground plugs maintain all the features of their standard plugs.

Features:

• Corrugated Ribs to Prevent Flashover
• Pure alumina silicate ceramic insulator, providing superior strength and better heat transfer
• Copper core to aid in heat removal
• Triple seals to prevent leakage
• Sold individually

Shell:

• Thread Size: 14mm
• Thread Pitch: 1.25mm
• Seat Type: Gasket
• Resistor Value: 5K Ohm
• Reach: 19mm (3/4")
• Hex Size: 13/16" (21mm)
• Terminal Type: Removable Nut
• Overall Height: ISO
• Gap: 0.055" (1.4mm)

Center Electrode:

• Material: Nickel
• Type: Standard
• Size: 2.5mm
• Projection: Non-Projected

Ground Electrode:

• Material: Nickel
• Type: Multi-Ground
• Quantity: 4

Specifications:

• Warranty: 1 Year
• Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
• Heat Range: 8
• Longevity: 50k Miles
• Resistor: Yes

Manufacturer Stock Number: 2329
