NGK's Standard Plugs are Constructed for Longer Life and Optimum Performance.

• Trivalent Metal Plating Provides Superior Anti-Corrosion and Anti-Seizing Properties
• Corrugated Ribs Prevent Flashover
• Pure Alumina Silicate Ceramic Insulator, Provides Superior Strength and Better Heat Transfer
• Copper Core Aids in Heat Removal
• Triple Seals Prevent Leakage
• Sold individually

Features

• Corrugated Ribs
• Triple-Gasket Sealing Process
• Copper Core

Shell

• Thread Size: 14mm
• Thread Pitch: 1.25mm
• Seat Type: Gasket
• Resistor: No
• Reach: 9.5mm (3/8")
• Hex Size: 3/4" (19mm)
• Terminal Type: Removable Nut
• Overall Height: Bantam
• Gap:. 028" (0.7mm)

Center Electrode

• Material: Nickel
• Type: Standard
• Size: 2.5mm
• Projection: Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Quantity: 1

Specifications

• Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
• Brand: NGK
• Heat Range: 6
• Longevity: 30k

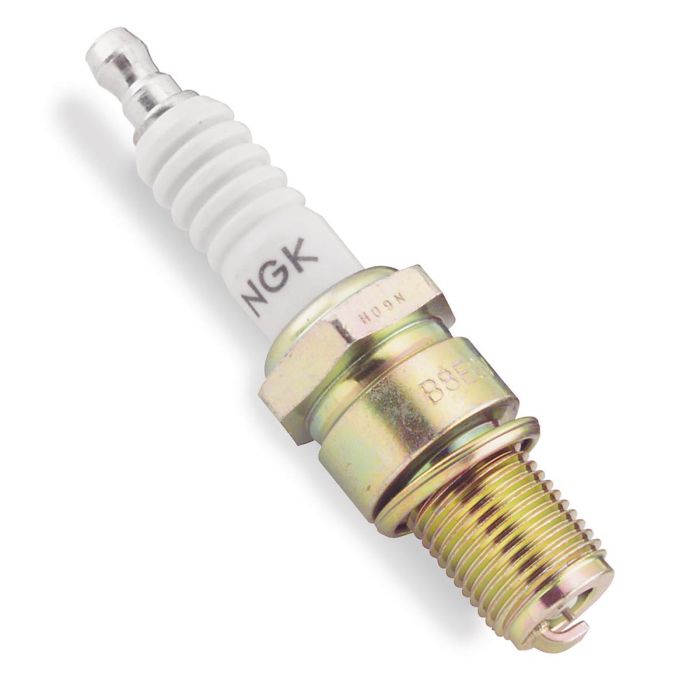

Note: Image for reference only, actual product may vary.
