NGK's V-Power Plugs Feature a Unique V-Cut in the Center Electrode that Directs the Spark to the Edge of the Electrode, Helping the Spark Develop More Rapidly, Increasing Ignitability and Reducing Quenching.

• Trivalent Metal Plating Provides Superior Anti-Corrosion and Anti-Seizing Properties
• Corrugated Ribs Prevent Flashover
• Pure Alumina Silicate Ceramic Insulator, Provides Superior Strength and Better Heat Transfer
• Copper Core Aids in Heat Removal
• Triple Seals Prevent Leakage
• Sold individually

Features

• V-Groove Increases Ignitability
• Trivalent Metal Plating
• Copper Core

Shell

• Thread Size: 14mm
• Thread Pitch: 1.25mm
• Seat Type: Gasket
• Resistor: Yes
• Resistor Value: 5K Ohm
• Reach: 19mm (3/4")
• Hex Size: 13/16" (21mm)
• Terminal Type: Solid
• Overall Height: JIS
• Gap:. 043" (1.1mm)

Center Electrode

• Material: Nickel
• Type: V-Cut
• Size: 2.5mm
• Projection: Projected

Ground Electrode

• Material: Nickel
• Type: Standard
• Quantity: 1

Specifications

• Torque Specs: Cast Iron: 18-25.3 lb. ft. Aluminum: 18-21.6 lb. ft.
• Brand: NGK
• Heat Range: 5
• Longevity: 30k
• Features: 2.5mm Insulator Projection

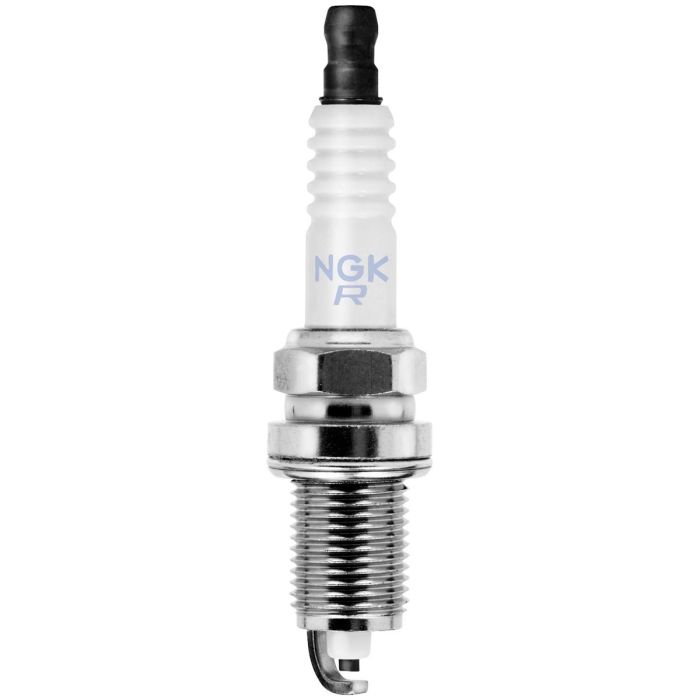

Note: Image for reference only, actual product may vary.
