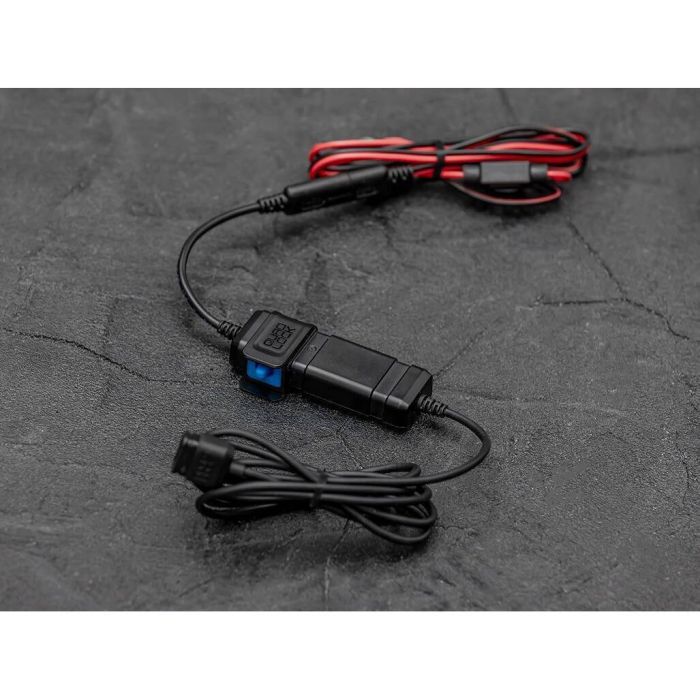

Quad Lock Waterproof 12V to USB Adapter - QLA-PBX

The Waterproof 12V to USB Smart adapter was developed to provide power to the Quad Lock Weatherproof Wireless Charging Head for motorcycles without a factory-installed USB port via SAE / Battery Ring Terminal. Easily toggle the Smart adapter between Auto, On and Off. Auto function is designed to keep the device off until input voltage rises above 13.5V and then turn off when voltage drops below 12V in order to keep the battery from draining.

Specifications:

• IP66 Rated
• Hardwired 1.5 USB-A Female Port & 10 cm SAE Pin
• Input: 12V - 24v DC
• Output: USB-A Up to 18W Max Power (5V/3A, 9V/2A, 12v/1.5A)
• Reverse Polarity Protection saves your battery in the instance the Ring Terminal Cables are connected to the incorrect battery terminal
• In-line 3A rated fast blow fuse protects from battery drain in the rare case there was a fault

Includes:

• 1 x Waterproof 12V to USB Smart adapter with 1.5 m USB-A Female Port and 10 cm SAE Cable
• 1 x 1m SAE to Ring Terminal Cable with in-line fuse
• 1 x USB-A Seal Boot
• 5 x 5 x 250 mm Zip Ties
