RAM Mounts 1.5" Ball Marine Electronic "RUGGED USE" Mount for Humminbird 100, 300, 500, 700, Matrix and Elite-5 Kit - RAM-107

This product is a Complete Kit. All components to complete your setup are included

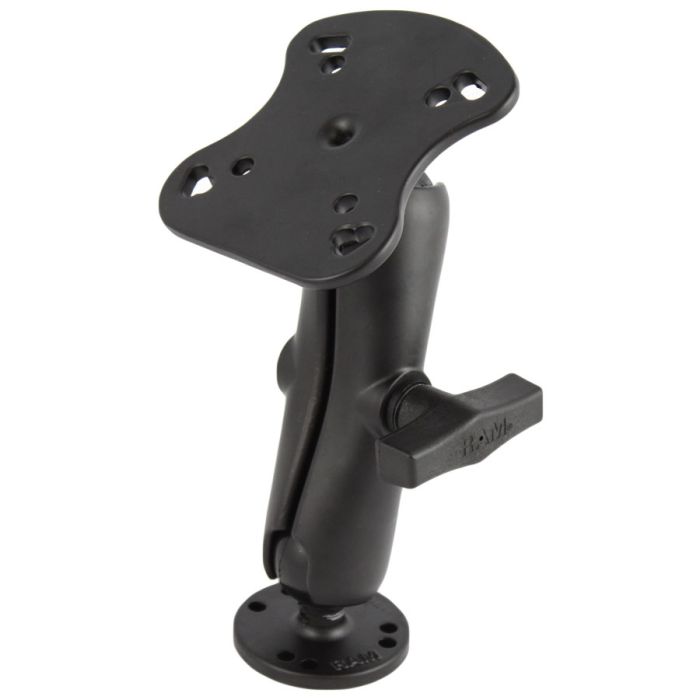

The RAM-107 consists of a double socket arm, 2.5" diameter round base with the universal AMPS hole pattern and connecting Humminbird/Apelco marine adapter base. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.

Overall Height:
7.35"

Weight Capacity:
Up to 10 lbs.

Ball Size: 1.5" Rubber Ball Size

Material: Powder Coated Marine Grade Aluminum

Compatible Devices:

• Humminbird 700 Series
• Humminbird 500 Series
• Humminbird 300 Series
• Humminbird 100 Series
• Humminbird Matrix Series (excluding Matrix 97)
• Lowrance Elite-5
• Lowrance Elite-5M
• Lowrance Elite-5X
• Raymarine Apelco Fishfinder with matching hole pattern

Additional Resources:

Plate Hole Patterns
