The RAM Sealed Enclosure is a Cradle. You may need to purchase other components to complete your setup

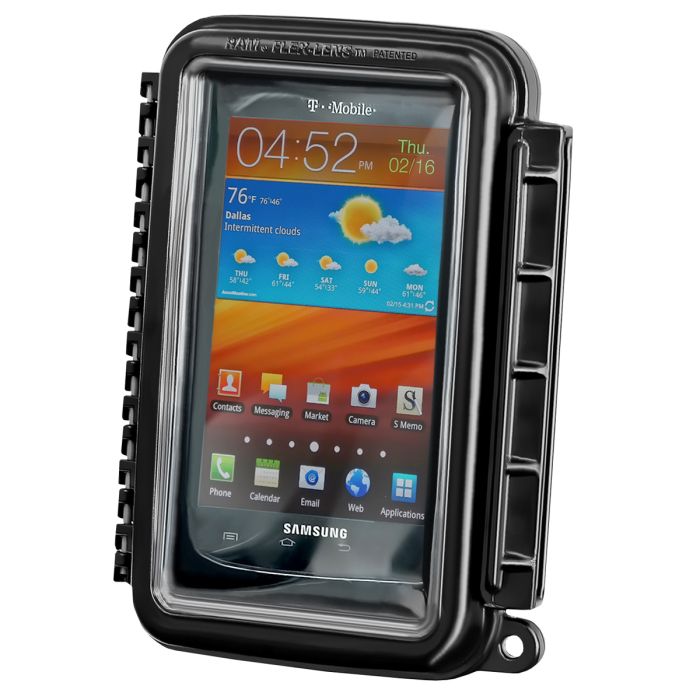

RAM-HOL-AQ2U, RAM-HOL-AQ3U and RAM-HOL-AQ6U cases provide sealed enclosure and protection for your handheld devices. The clear, touch through screen allows you to view your electronics as well as use their function keys while in place. There is even a place for a small lock to serve as a theft deterrent. The AMPS hole pattern on the back of the box allows this enclosure to be attached to a multitude of RAM mounting bases and kits (adapter sold separately). Ideally suited for Motorcycles to keep your portable devices safe, dry, and accessible.

Features:

• A unique, patented all inclusive seal and Flex-Lens
• Touch through lens to operate buttons
• Power, earphone and accessory cables are routed through a patented, self draining baffle design to keep moisture out
• Fits any RAM Mounting System
• Easily locks with any standard mini padlock
• All marine grade construction including stainless steel hinge pin and mounting hardware
• Flex-Lens may be replaced in seconds if scratched or damaged
• Lifetime Warranty on all components other than Flex-Lens

AQUA BOX Small (RAM-HOL-AQ3U) Internal Dimensions:
Width=2.38", Height=4.63", Depth=1.13" inches

AQUA BOX Small (RAM-HOL-AQ3U) External Dimensions:
Width=3.5", Height=5.25", Depth=1.5" inches

AQUA BOX Medium (RAM-HOL-AQ2U) Internal Dimensions:
Width=2.88", Height=5.75", Depth=1.188" inches

AQUA BOX Medium (RAM-HOL-AQ2U) External Dimensions:
Width=4", Height=6.5", Depth=2" inches

AQUA BOX Wide (RAM-HOL-AQ6U)Internal Dimensions:
Width=6", Height=4", Depth=1.75" inches

AQUA BOX Wide (RAM-HOL-AQ6U) External Dimensions:
Width=6.5", Height=5.25", Depth=2" inches

Material:

• High Strength Composite

Installation Instructions:

The face of the AQUA BOX™ is a door, allowing you to place your electronic device in the cradle. If required, you can lock the box, with a small padlock, once closed. Inside the RAM AQUA BOX™ are padded sheets enabling you to place your electronic device in the box firmly and securely. You can punch out the back of the AQUA BOX™ to allow cables to be connected to your device, while maintaining a waterproof environment.
