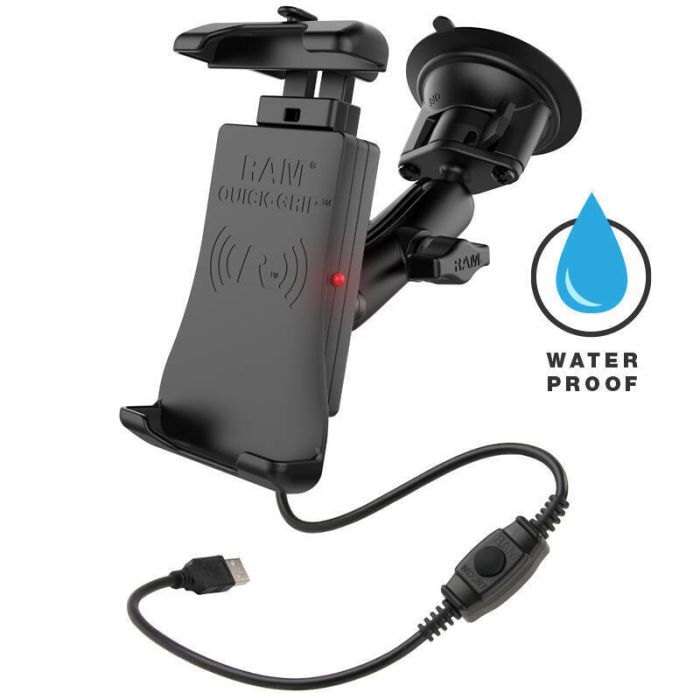

RAM Mounts Quick-Grip Waterproof Wireless Charging Suction Cup Mount - RAM-B-166-UN14W

This product is a Complete Kit. All components to complete your setup are included.

The RAM® Quick-Grip™ Wireless is a patented, universal waterproof wireless charging cradle for phones. As part of the spring-loaded RAM® Quick-Grip™ family, this cradle allows for single-handed placement and removal of your phone while taking advantage of Qi wireless phone charging. Both the top and bottom cups feature rubber to help hold your phone firmly in place. To insert your device, use your phone to push the top cup upward and then gently place your device against the cradle for a secure fit. This Qi wireless charging cradle ensures your compatible phone charges as long as it’s within the listed compatible dimensions. For added security and peace of mind, a device tether is included that’s recommended for outdoor applications. This RAM® Quick-Grip™ Wireless suction cup kit includes a B size diamond base featuring a 1” rubber ball, medium length double socket arm, and RAM® Twist-Lock™ suction cup. The connected Type-A male pigtail connector features an in-line switch that allows you to turn off the wireless charging module when not in use. For in-vehicle charging, attach the pigtail to the included 1.2m Type-A male to Type-A female extension cable.

Dimensions:

• Socket-To-Socket Length: 3"

Clamping Dimensions:

• Width Range: 2.375" - 3.25"
• Depth Range: .875" max

Material:

• Marine-grade aluminum
• High strength composite
• Stainless steel

Ball Size:

• 1" Rubber Ball "B" Size

Power Specifications

• Input Power:5V-2A; 9V-1.67A
• Output: 5W / 7.5W / 10W
• Conversion Efficiency: 85% Max
• Transmitting Distance: 5-8mm
• Working Frequency: 110-205KHZ
• Product Standard: WPC v.1.2.4
• QI Compatible
• Compatible with QC2.0/QC3.0 power supplies

Output Connector Type

• USB Type-A Male

Input Cable Length

• 20" with optional 1.2M extension cable
