RAM Mounts Single Swing Arm with Rectangle Base and Vertical Mounting Base Kit - RAM-109V

This product is a Complete Kit. All components to complete your setup are included

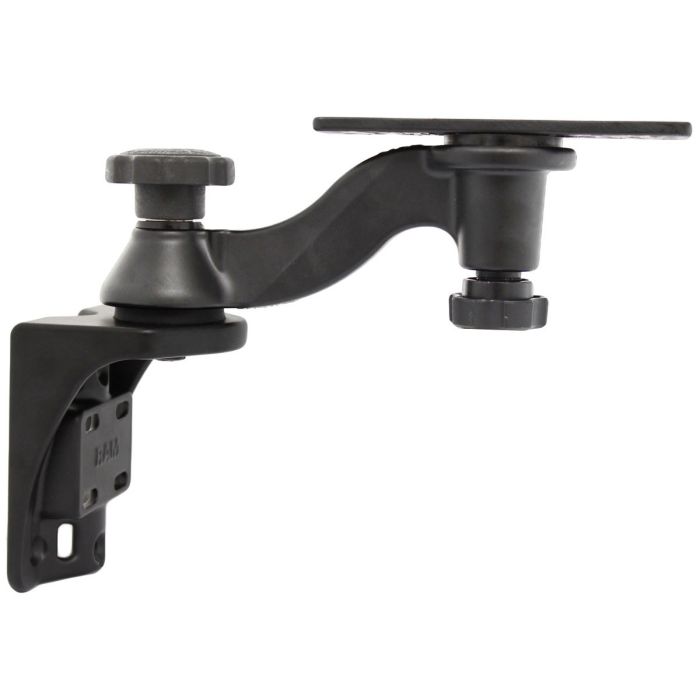

The RAM single swing arm mount consists of a 6" long swing arm mounted on a vertical surface mounting base. At the device mounting end of the mount is a rectangular 6.25" x 2" plate. There are two (2) pivoting points on the mount. One at the swing arm and base and one at the center of the rectangular plate and the end of the swing arm. Each pivoting point allows a complete 360 degree rotation.

Max Weight Capacity:
10 lbs.

Dimensions:

• Center of knob to center of ball socket: 6"
• Overall length of swing arm assembly: 11.4375"
• Overall height: 8.45"

Material: Powder Coated Marine Grade Aluminum

Compatible Devices:

• Garmin Fishfinders/Chartplotters
• Humminbird Fishfinders/Chartplotters
• Lowrance Fishfinders/Chartplotters
• Raymarine Fishfinders/Chartplotters

Additional Resources:

Plate Hole Patterns
