RAM Mounts Stem Mount Finger Grip Cell Phone Complete Kit - RAM-B-176-UN4U

This is a complete kit, however, you may need to purchase other components to complete your setup

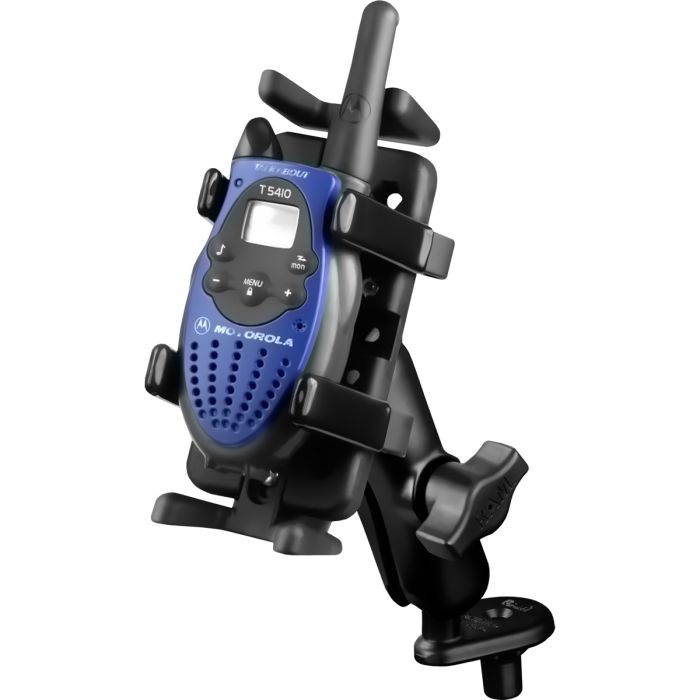

The RAM-B-176-UN4U consists of a fork stem base, double socket arm, diamand adapter base and high strength universal Finger Grip™ holder. This one of the cleanest ways to mount small electronics on your motorcycle. Simply slide the assembly into the hole of the stem and tighten the machine screw to create a tight fit.

The universal Finger Grip™ holder is designed to hold a large amount of cell phones and electronic devices. The holder comes with 3 sets of four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the holder includes a back plate that adds support to the device being held by the mount.

The base is designed to fit into the cylindrical bore wall of fork stems and will work with stems that measure from 12-28mm or .5" - 1.10" at the following intervals:

Metric / Standard

• 12mm / .5"
• 14mm / .55"
• 16mm / .63"
• 18mm / .71"
• 20mm / .79"
• 28mm / 1.10"

This mount is designed to hold the following devices:

• Cell Phones (check measurements below for dimensions)
• 2-Way Radios
• GPS Devices
• Works with OtterBox (Defender, Commuter, Impact) Cases, Phones with Bumper, Twisted Metal Case and More Perfect rugged solution for the Blackberry, HTC Evo, Droid X, iPhone, and More Use on your Motorcycle, ATV, UTV, Car, Boat and More

Height Dimensions:

• Minimum with Top and Bottom Plates: 5.25"
• Maximum with Top and Bottom Plates: 6.0"
• The top and bottom plates can be removed for larger devices.

Spine Plate Dimensions:

• 3" Width x 3" Height

Using Short Arm Side Clamps:

• Maximum Depth: 0.75"
• Minimum Width: 1.25"
• Maximum Width: 3.0"

Using Medium Arm Side Clamps:

• Maximum Depth: 1.25"
• Minimum Width: 1.5"
• Maximum Width: 3.5"

Using Long Arm Side Clamps:

• Maximum Depth: 1.6"
• Minimum Width: 2.25"
• Maximum Width: 3.5"

Ball Size: 1" Rubber Ball "B" Size

Material:

High Strength Composite & Powder Coated Marine Grade Aluminum

Note: Certain motorcycles require adding electrical tape to the area of the plug that has the largest diameter until it fits snugly in the stem.

Additional Resources:

RAM Fork Stem Installation Instructions
