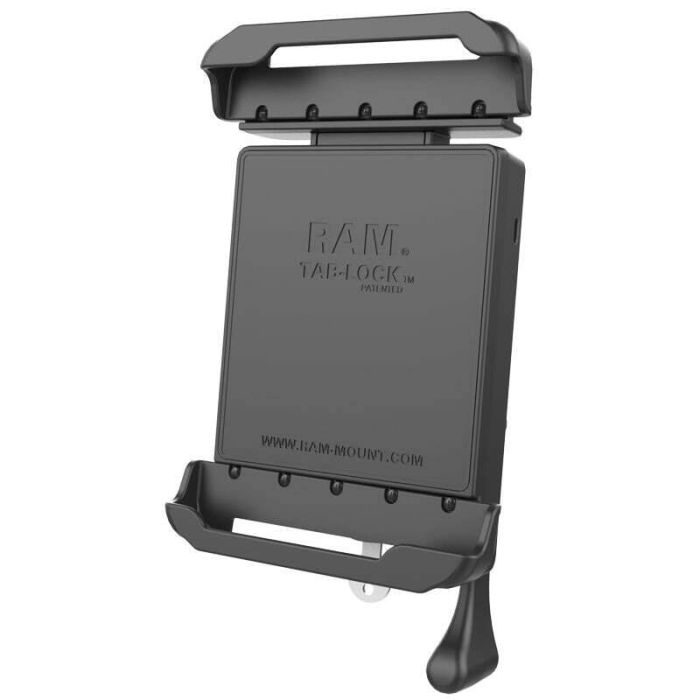

RAM Mounts Tab-Lock Spring Loaded Holder for 7 - 8" Tablets with Cases - RAM-HOL-TABL23U

The RAM-HOL-TABL23U is a Cradle. You may need to purchase other components to complete your setup

The RAM® Tab-Lock™ spring loaded, quick release cradle with a keyed lock offers a secure fit with easy access to the mounted tablet. The keyed lock offers theft deterrence and unwanted tampering in public settings. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab 4 8.0 and Tab S 8.4 with an Otterbox Defender case. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. The included back plate is interchangeable with various size support cups, making it compatible with numerous tablet models. New detachable support cups are the only components needed for purchase, attach to the back plate for support of your new tablet. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. The Tab-Lock™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size. Product consists of holder only. Case not included.

Features:

• Locking mechanism for theft deterrence
• Support cups contain open slots to accomodate for tablets of various sizes
• Back plate can support various size support cups
• Spring loaded tension provides secure support and quick release for your tablet

Holder dimensions:

• Height Range: 8.32"-10.92"
• Width Range: 4.43"-5.3"
• Depth Range: 0.13"-0.62"

Specifications:

• Hole pattern: 4-Hole AMPS: 1.181" x 1.496"
• Materials: high strength composite
• Packaging type: poly bag
• Weight: 1.15 lbs

Compatiblity:

• Galaxy Tab 4 8.0 with Otterbox Defender Case
• Galaxy Tab A 8.0 (2017) with Case
• Galaxy Tab A 8.0 (2018) with Case
• Galaxy Tab A 8.0 (2019) with Case
• Galaxy Tab S 8.4 with Otterbox Defender
• Galaxy Tab E 8.0 with Verizon Rugged Case
• Galaxy Tab Active2

Included:

• Assembly Hardware
• (2) #8 x 5/8" Sheet Metal Screws
• (2) M4 x 32mm Machine Screws
• (2) M4 Nylock Nuts
• (2) Keys

Installation Instructions (2.24 MB)
