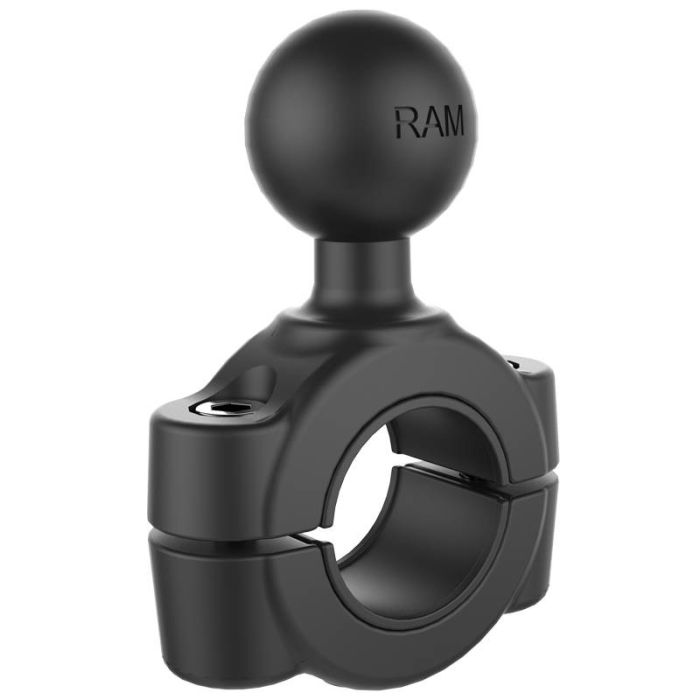

RAM Mounts Torque Handlebar/Rail Base with 1" Ball

The RAM® Torque™ handlebar mounting base features a 1" B size RAM® rubber ball. Sizing inserts are included to provide a tight fit while also protecting the mounting surface. The RAM® Torque™ mounting base also includes nylon-insert locknuts to prevent loosening in high vibration environments.

Features:

• Handlebar mounting base with B size 1" rubber ball accommodates rails .75 - 1"/1 / .125" - 1.5" in diameter
• Includes sizing inserts to provide a tight fit while protecting the mounting surface; mount includes nylon-insert locknuts to prevent loosening
• Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Hardware Included:

• Size: Regular
  • (2) #10-24 x 1" Socket Head Cap Screws
  • (2) #10-24 Nylock Nuts
  • (2) .75" Composite Bushings
  • (2) .9" Composite Bushings
  • (1) 88.9 mm Rubber Strip
  • (1) 5/32" Hex Key Wrench
• Size: Large
  • (2) #10-24 x 1" Socket Head Cap Screws
  • (2) #10-24 Nylock Nuts
  • (2) 1.12" Split Reducing Bushings
  • (2) 1.27" Split Reducing Bushings
  • (1) 5/32" Hex Key Wrench
  • (1) 127 mm x 17 mm Rubber Adhesive Strip

Mounting Base Dimensions:

• S : Accommodates rails 3/4" to 1" in diameter
• L : Accommodates rails 1 1/8" to 1 1/2" in diameter

Ball/Socket Size:

• B Size (1")

Weight Capacity:

• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb

Materials:

• Marine-grade aluminum
