RAM Mounts U-Bolt Complete Kit with Standard Double Socket Arm

This product is a Complete Kit. All components to complete your setup are included

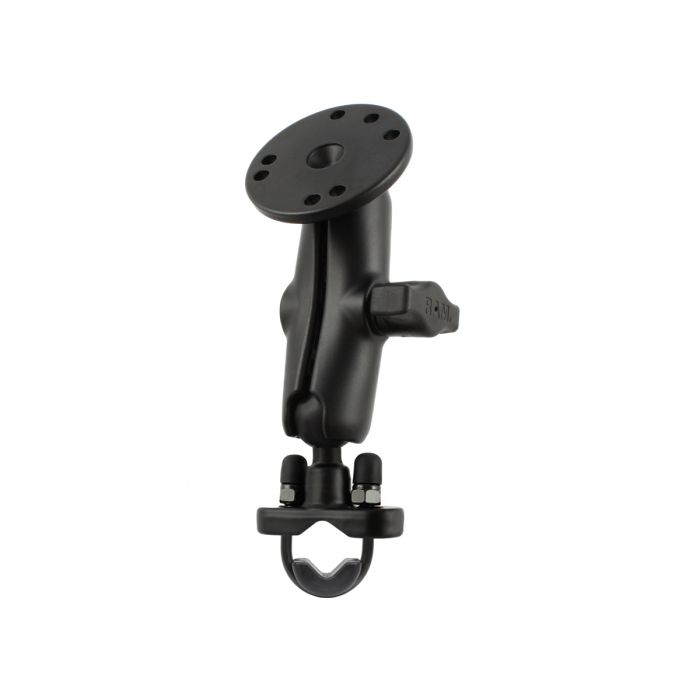

The RAM-B-149Z-202U consists of a zinc coated u-bolt base, double socket arm and round base adapter. The round base adapter has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third party cradles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5". The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

The RAM-B-149ZU consists of a zinc-coated U-bolt base, double socket arm, and diamond adapter base. The diamond adapter base has a hole pattern that matches the industry standard AMPS hole pattern and will connect to a large variety of RAM® components. Included is hardware that will accommodate rails from .5" to 1.25" in diameter. A composite rail adapter can narrow the rail to a minimum width of 0.5". Also included is a B size medium length double socket arm featuring adjustment points at both ends, allowing for near-infinite adjustability.

Features:

• 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
• Includes U-bolt base that accommodates rails from .5" to 1.25" in diameter and a medium length B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
• Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
• Backed by a lifetime warranty

Hardware Included:

• (1) 1/4"-20 U-Bolt for .5" - 1" Rails
• (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
• (2) 1/4"-20 Nylock Nuts
• (2) Rubber Caps
• (1) U-Bolt Spacer

Clamp Range:

• .5" - 1.25" diameter

Hole Pattern:

• 2-Hole AMPS: 1.912"
• 4-Hole AMPS: 1.181" x 1.496"
• 3-Hole 120-Degree: 1.812" Diameter

Ball/Socket Size:

• B Size (1")

Weight Capacity:

• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb

Materials:

• Marine-grade aluminum
• High strength composite
