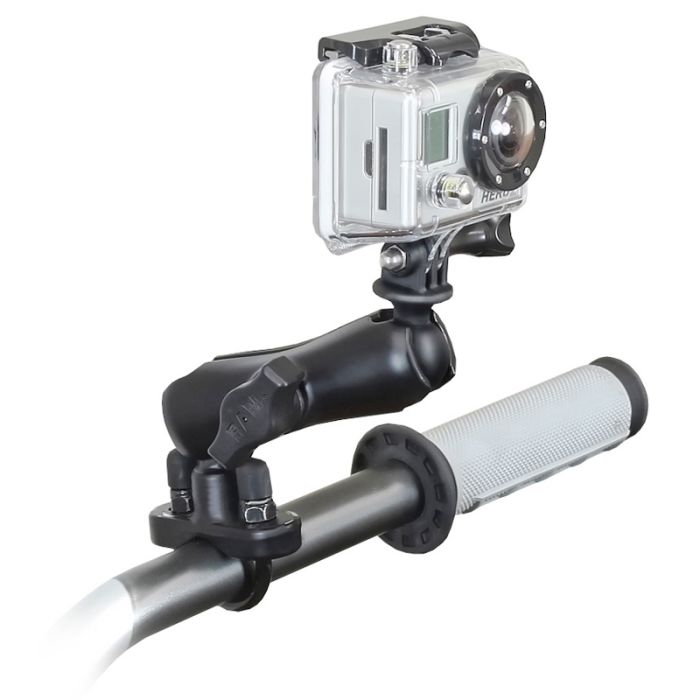

RAM Mounts U-Bolt GoPro Complete Kit - RAM-B-149Z-GOP1U

The RAM-B-149Z-GOP1U is a Complete Kit. You may need to purchase other components to complete your setup

The RAM-B-149Z-GOP1U consists of a zinc coated u-bolt base, standard size double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5".
The GoPro® Hero adapter attaches directly to the under-side of the camera, replacing the factory mounting bracket.
Compatible GoPro® Cameras:

• HD HERO
• HD HERO2
• HD HERO3
• HD HERO 960

U-Bolt Dimensions:

Accommodates rails from 0.5" to 1.25" in diameter.
Material:
High Strength Composite & Powder Coated Marine Grade Aluminum
Ball Size:
1" Rubber Ball "B" Size
Note:
GoPro camera and black thumb screw not included with purchase.

The RAM-B-149Z-GOP1U consists of a zinc coated u-bolt base, standard size double socket arm and 1" diameter ball with custom GoPro® Hero adapter. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. Included in this package is hardware that will accommodate rails from 0.50" to 1.25" in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5". The GoPro® Hero adapter attaches directly to the under-side of the camera, replacing the factory mounting bracket.

Hardware Included:

• Assembly Hardware
• (1) 1/4"-20 U-Bolt for .5" - 1" Rails
• (1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
• (2) 1/4"-20 Nylock Nuts
• (2) Rubber Caps
• (1) U-Bolt Spacer

Clamp Range:

• .5" - 1.25" diameter

Socket-To-Socket Length:

• 3"

Ball/Socket Size:

• B Size (1")

Weight Capacity:

• Standard Use: 2 lbs
• Heavy-Duty Use: 1 lb

Materials:

• Marine-grade aluminum
• High strength composite

For list of compatible devices, please visit the RAM Mounts website.
